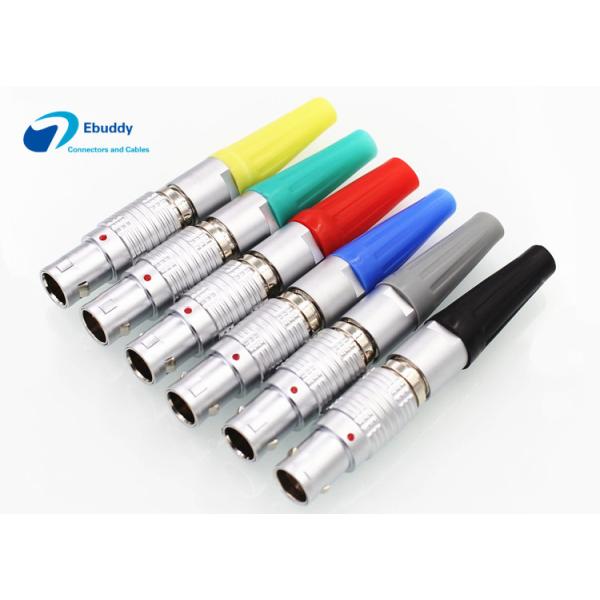

Lemo 1B 3pin Male Connectors

Brand Name : Ebuddy

Model Number : HGG.1B.303.CLAD

Certification : CE.ROHS

Place of Origin : China

MOQ : 1

Price : 0.5USD

Payment Terms : Western Union, T/T，Paypal

Supply Ability : 10000pcs per month

Packaging Details : pp pag

Shell Style : Straight plug with cable collet

Keying : 1 key (alpha=0)

Housing Material : Brass (chrome plated) shell

Rated Current : 15A

Max. Matings: 5000 : 5000

IP Rating : IP50

R (max) : 3.6 mOhm

Configuration : Brass (gold plated)

Contact Now

Cable connector Lemo alternative push pull circular male plug 1B 3pin male connectors

Description:

  • subtitute B-series connector, cable to cable connector, free socket ,inline connector
  • can be wth different degree , such us 30, 45, 60, 90, 135
  • can plated with white or black chrome

Cable collet size for your option:

　 Collet No. Cable OD
1B Type coding Max Min
M 31 3 2.6
D 42 4.0 3.1
D 52 5.0 4.1
D 62 6.0 5.1
D 72 7.0 6.1

Technical specifications:

PERFORMANCE DETAILS
Insert 1B.303 :3Low Voltage
Configuration Brass (gold plated)
Insulator P:PPS
Specifications Low Voltage
Contact Type Solder
Max. Matings 5000
Contact Dia 1.3 mm
Bucket Dia1 mm
Max. Solid Conductor 0.5 mm^2 (AWG 20)
Max. Stranded Conductor 0.5 mm^2 (AWG 20)
R (max) 3.6mOhm
Vtest (AC) 1600 V
Rated Current 12 A
OTHER CHARACTERISTICS
Endurance (Shell) 5000 mating cycles
Temp (min) -20 deg C
Temp (max) +150 deg C
Humidity (max) <=95% [at 60 deg C / 140 F]
IP Rating 50
Why choose Ebuddy

1.Complete compatible with lemo/odu/fischer/ connector with lower cost

2.ROHS,ISO9001:2008,UL standard

3.Short delivery time:7-10 days normally

4.Factory can produce 5000 set/week

5.Samples offer to check first

Size and drawing

Lemo 1B 3pin Male Connectors

Lemo 1B 3pin Male Connectors
